Dhupar Brothers Trading Pvt Ltd

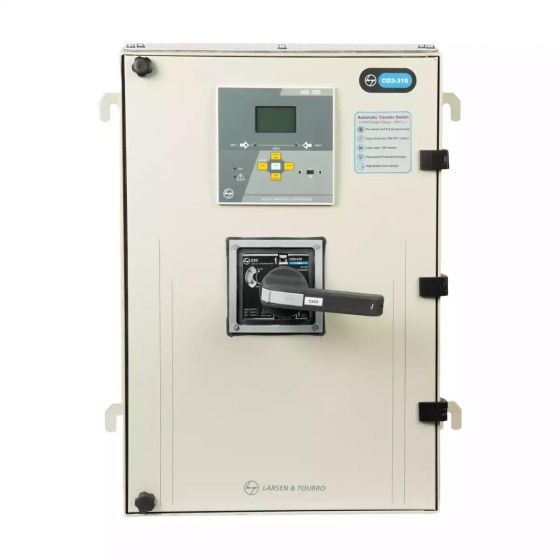

C-Line Enclosed Automatic Transfer Switch Fr3 315A 4P 415V AC CK90165BSOO
C-Line Enclosed Automatic Transfer Switch Fr3 315A 4P 415V AC CK90165BSOO
Regular price
Rs. 72,560.00
Regular price
Sale price
Rs. 72,560.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Rated Operational Current (A) | 400 |
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 IS/IEC 60947-6-1, EN 60947-6-1 |
| Utilization Category | AC-23A, AC-32B |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 10000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 22 |
| Rated Operational Power (kW) | 225 |
| Rated Breaking Capacity@AC-23A (A) | 3200 |
| Rated Making Capacity@AC-23A (A) | 4000 |
| Version | ATS, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 10000 |
| Maximum Al termination (sq.mm) | 2*300 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
