Dhupar Brothers Trading Pvt Ltd

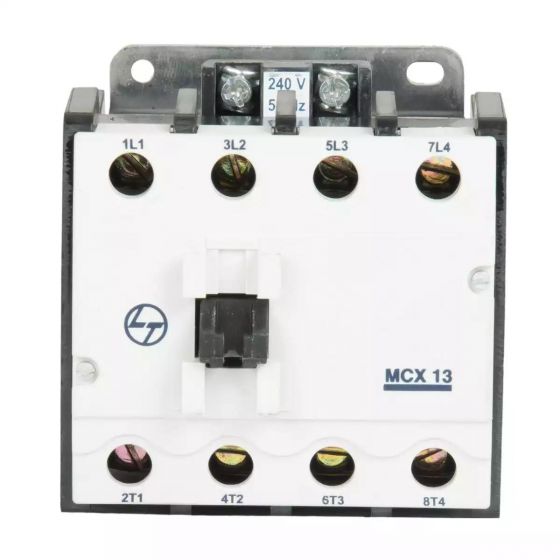

MCX Contactor 80A 4P 415V AC AC-1 240V AC Coil 50/60 Hz CS97015BOOO
MCX Contactor 80A 4P 415V AC AC-1 240V AC Coil 50/60 Hz CS97015BOOO
Regular price
Rs. 5,670.00
Regular price
Rs. 8,100.00
Sale price
Rs. 5,670.00
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 60 degree C |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 415 V AC |
| Rated operational current at 415V | 80A (AC1) |
| No. of Poles | 4P |
| Height(mm) | 80 |
| Width(mm) | 83.5 |
| Depth(mm) | 91.8 |
| Coil Operating band %Uc (Pick up) | 50 -110 % |
| Coil Operating band %Uc (Drop off) | 25 - 45 % |
| Pick up VA consumption | 180VA |
| Hold on VA consumption | 22VA |
