Dhupar Brothers Trading Pvt Ltd

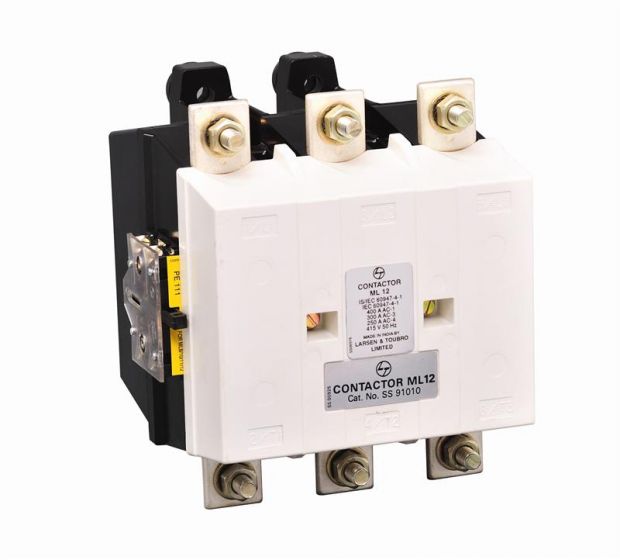

ML Contactor 300A 3P 415V AC In Built 2NO+2NC AC-3 380V AC Coil 50 Hz SS91010LOOO
ML Contactor 300A 3P 415V AC In Built 2NO+2NC AC-3 380V AC Coil 50 Hz SS91010LOOO
Regular price
Rs. 44,567.00
Regular price
Sale price
Rs. 44,567.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 1200 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 660V |
| Conformance to Standards | IS/IEC 60947-4-1, IEC 60947-4-1 |
| Coil Voltage | 380V AC Coil |
| Rated operational current at 415V | 70A |
| No. of Poles | 3P |
| Dimension 1 | 142 |
| Dimension 2 | 110 |
| Dimension 3 | 136 |
| Rated kW | 37kW |
| Rated making capacity | 840A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 700A |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 450VA |
| Hold on VA consumption | 50VA |
