Dhupar Brothers Trading Pvt Ltd

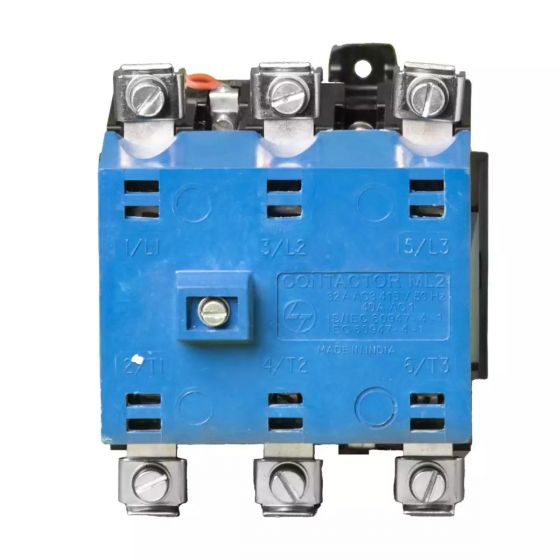

ML Contactor 32A 3P 415V AC In Built 2NO+2NC AC-3 415V AC Coil 50 Hz SS90701DOOO
ML Contactor 32A 3P 415V AC In Built 2NO+2NC AC-3 415V AC Coil 50 Hz SS90701DOOO
Regular price
Rs. 5,164.00
Regular price
Sale price
Rs. 5,164.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 2000 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 500V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 220 V AC |
| Rated operational current at 415V | 32A |
| No. of Poles | 3P |
| Height(mm) | 110 |
| Width(mm) | 94 |
| Depth(mm) | 115 |
| Rated kW | 15kW |
| Rated making capacity | 400A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 320A |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 120VA |
| Hold on VA consumption | 20VA |
