Dhupar Brothers Trading Pvt Ltd

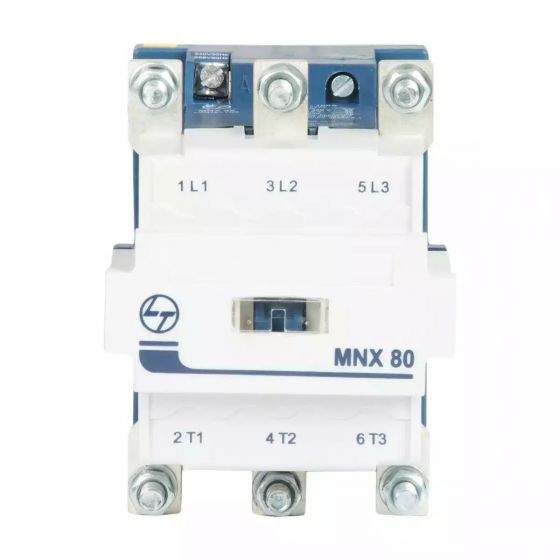

MNX Contactor 80A 3P 415V AC AC-3 24V AC Coil 50/60 Hz CS97077GOOO
MNX Contactor 80A 3P 415V AC AC-3 24V AC Coil 50/60 Hz CS97077GOOO
Regular price
Rs. 6,188.00
Regular price
Sale price
Rs. 6,188.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 3600 Cy/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 415 V AC |
| Rated operational current at 415V | 80A |
| No. of Poles | 3P |
| Height(mm) | 109 |
| Width(mm) | 89 |
| Depth(mm) | 120.5 |
| Rated kW | 40kW |
| Rated making capacity | 900V |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Rated breaking capacity | 750V |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 190VA |
| Hold on VA consumption | 21VA |
