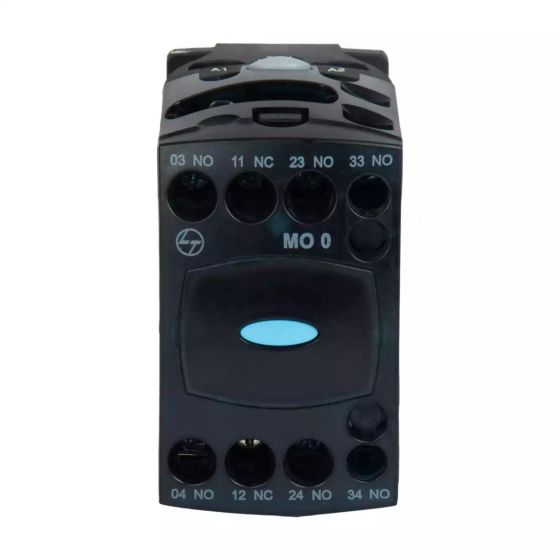

MO0 Control Contactor 4A 4P 415V AC 3NO+1NC AC-15 24V DC Coil CS900464OOO
MO0 Control Contactor 4A 4P 415V AC 3NO+1NC AC-15 24V DC Coil CS900464OOO
Regular price
Rs. 1,293.00
Regular price
Sale price
Rs. 1,293.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -5 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 7200 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094751, IEC 6094751, EN 6094751 |
| Coil Voltage | 220 V DC |
| Rated operational current at 415V | 4A (AC15) |
| No. of Poles | 4NO |
| Height(mm) | 83.5 |
| Width(mm) | 45 |
| Depth(mm) | 111 |
| Coil Operating band %Uc (Pick up) | 70 - 120 % |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 60 - 100 % |
