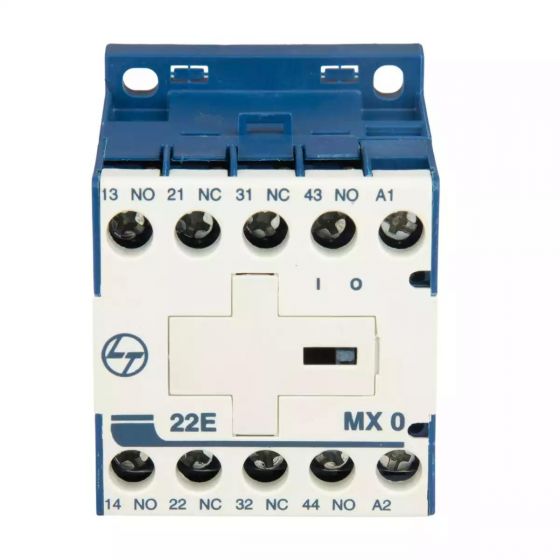

MX0 Mini Control contactor 4A 4P 415V AC 2NO+2NC AC-15 220V AC Coil 50 Hz CS94020KOOO
MX0 Mini Control contactor 4A 4P 415V AC 2NO+2NC AC-15 220V AC Coil 50 Hz CS94020KOOO
Regular price
Rs. 907.00
Regular price
Sale price
Rs. 907.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -5 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 9000 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094751, IEC 6094751, EN 6094751 |
| Coil Voltage | 24 V AC |
| Rated operational current at 415V | 4A (AC15) |
| No. of Poles | 2NO+2NC |
| Height(mm) | 58 |
| Width(mm) | 45 |
| Depth(mm) | 54.5 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 20 - 65 % |
| Pick up VA consumption | 26VA |
| Hold on VA consumption | 4.5VA |
