Teltonika

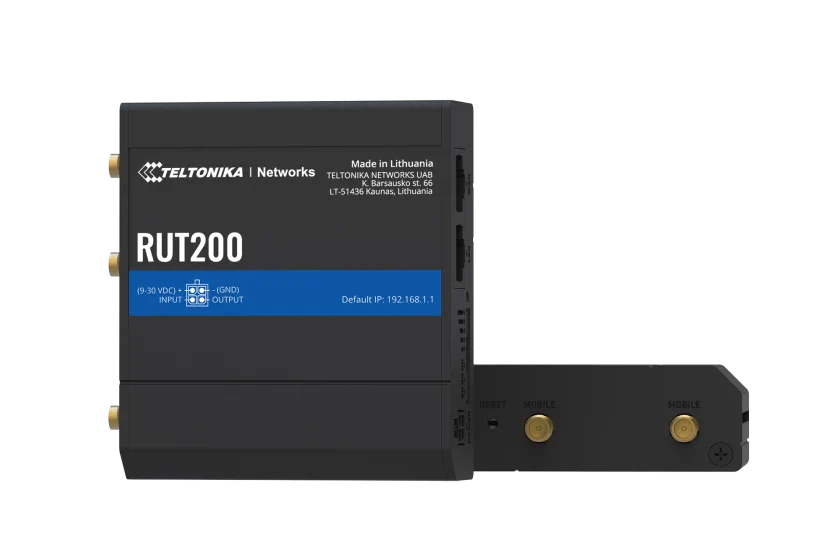

RUT200 Industrial Cellular Router, 4G LTE Cat 4, Wi-Fi
Part no. RUT200HSN 85176290GST 18%
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation and manufacturing. It has 4G LTE, Wi-Fi and two Ethernet ports, so primary and backup connectivity is quick to set up and can be managed remotely.
- Connectivity: 4G LTE Cat 4 (up to 150/50 Mbps), 3G, 2G
- Wi-Fi: 802.11b/g/n access point with hotspot
- WAN failover: switches automatically to an available backup connection
- RMS: remote management, access and VPN through Teltonika RMS
- Built for industry: aluminium housing, -40 °C to 75 °C, 9–30 VDC with passive PoE
- Mobile module 4G LTE Cat 4 up to 150 DL / 50 UL Mbps; 3G up to 21 / 5.76 Mbps; 2G up to 236.8 kbps
- 3GPP release Release 9
- SIM 1 x Mini SIM (2FF), 1.8 V/3 V; eSIM on selected order codes
- SIM switch Auto-switch on weak signal, data or SMS limit, roaming, no network, connection fail
- SMS Email to SMS, SMS to email, SMS to HTTP, scheduled SMS, autoreply, SMPP
Product details
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation and manufacturing. It has 4G LTE, Wi-Fi and two Ethernet ports, so primary and backup connectivity is quick to set up and can be managed remotely.
- Connectivity: 4G LTE Cat 4 (up to 150/50 Mbps), 3G, 2G
- Wi-Fi: 802.11b/g/n access point with hotspot
- WAN failover: switches automatically to an available backup connection
- RMS: remote management, access and VPN through Teltonika RMS
- Built for industry: aluminium housing, -40 °C to 75 °C, 9–30 VDC with passive PoE
Datasheets and catalogs
Specifications
- Brand
- Teltonika
- Part number
- RUT200
- HSN code
- 85176290
- GST rate
- 18%
- Mobile module
- 4G LTE Cat 4 up to 150 DL / 50 UL Mbps; 3G up to 21 / 5.76 Mbps; 2G up to 236.8 kbps
- 3GPP release
- Release 9
- SIM
- 1 x Mini SIM (2FF), 1.8 V/3 V; eSIM on selected order codes
- SIM switch
- Auto-switch on weak signal, data or SMS limit, roaming, no network, connection fail
- SMS
- Email to SMS, SMS to email, SMS to HTTP, scheduled SMS, autoreply, SMPP
- Wireless mode
- 802.11b/g/n (Wi-Fi 4), Access Point and Station
- Wi-Fi security
- WPA2-Enterprise, WPA2-PSK, WPA3-SAE, WPA3-EAP, OWE, 802.11w PMF
- WAN port
- 1 x 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
- LAN port
- 1 x 10/100 Mbps, IEEE 802.3/802.3u, auto MDI/MDIX
- Digital input
- 1 x DI, 0–6 V low, 8–30 V high
- Digital output
- 1 x open collector, max 30 V, 300 mA
- Antenna connectors
- 2 x SMA (LTE), 1 x RP-SMA (Wi-Fi)
- Status LEDs
- 3 x connection type, 5 x signal strength, 2 x LAN, 1 x power
- CPU
- MediaTek 580 MHz, MIPS 24KEc
- RAM / Flash
- 128 MB DDR2 / 16 MB SPI flash
- Power connector
- 4-pin industrial DC socket
- Input voltage
- 9–30 VDC, reverse polarity and surge protection
- PoE
- Passive PoE in on LAN1 (Mode B, 9–30 VDC); not 802.3af/at/bt
- Power consumption
- < 6.5 W max
- Housing
- Aluminium, plastic panels
- Dimensions (W x H x D)
- 83 x 25 x 74 mm
- Weight
- 125 g
- Mounting
- DIN rail, wall, flat surface (kit needed)
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 10% to 90% non-condensing
