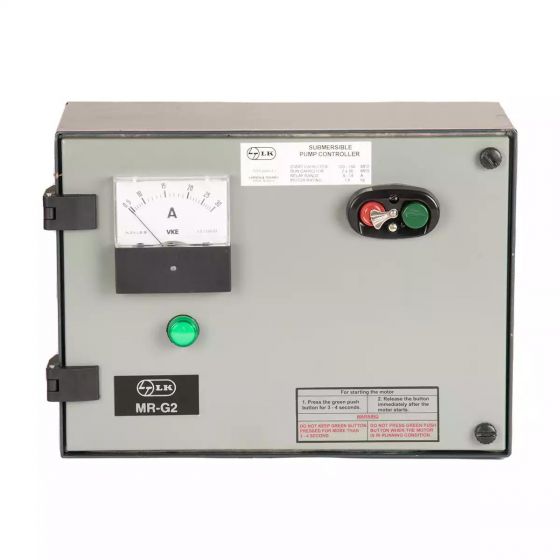

Single Phase Controller for Submersible Pump Application,MR-G2,1.5HP,120 / 150mfd,1 x 72mfd SS96989BCCJ
Single Phase Controller for Submersible Pump Application,MR-G2,1.5HP,120 / 150mfd,1 x 72mfd SS96989BCCJ
Regular price
Rs. 3,461.00
Regular price
Sale price
Rs. 3,461.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| With Ammeter only / Ammeter and Voltmeter | With Ammeter Only |
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Mechanical Life | 5 Million Operations |
| Service temperature | -5 to 55 |
| type | MR-G2 |
| Rated Impulse Withstand Voltage | 6kV |
| Rated Insulation Voltage | 660V |
| With/ Without WLC | Without WLC |
| Run Capacitor | 1X72 |
| Start Capacitor | 150/200 |
| HP | 1.5HP |
| Length(mm) | 357 |
| Breadth(mm) | 145.8 |
| Height(mm) | 230 |
| Relay Range (A) | 9 - 14A |
