Dhupar Brothers Trading Pvt Ltd

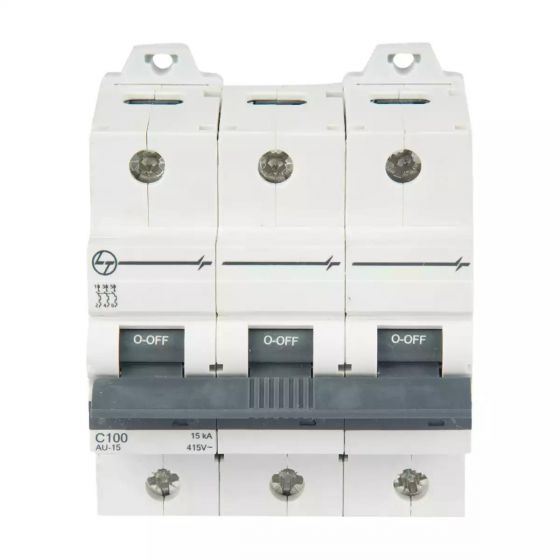

AU HR MCB 100A TP 415V AC 15kA C Curve AU15S31003C
AU HR MCB 100A TP 415V AC 15kA C Curve AU15S31003C
Regular price
Rs. 6,653.50
Regular price
Rs. 9,505.00
Sale price
Rs. 6,653.50
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Operating Temperature Range | -25?C to +60? C |
| Electrical life (Operating Cylces) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (Rigid)50 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 15kA |
| Rated Impulse Voltage | 6kV |
| Current Rating | 125A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 60947-2 |
| Tripping Characteristic | C Curve |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 78.9 |
