Dhupar Brothers Trading Pvt Ltd

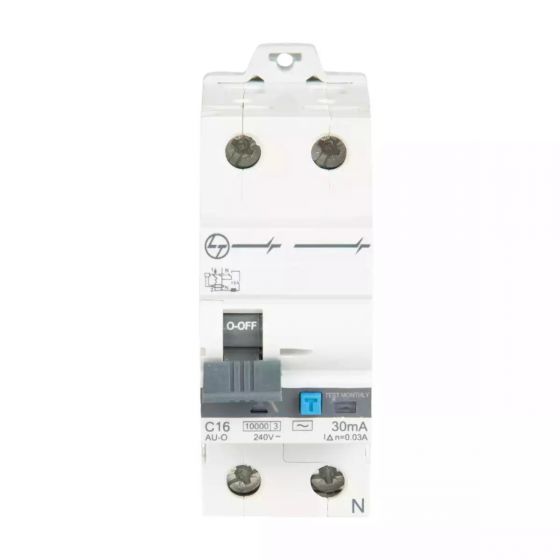

AU RCBO 16A DP 240V AC 10kA 30mA C Curve AUF3C201603
AU RCBO 16A DP 240V AC 10kA 30mA C Curve AUF3C201603
Regular price
Rs. 3,321.50
Regular price
Rs. 4,745.00
Sale price
Rs. 3,321.50
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Operating Temperature Range | -25?C to +60?C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid)25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 16A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1, IS 12640-2 |
| Tripping Characteristic | C Curve |
| Sensitivity | 100mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
