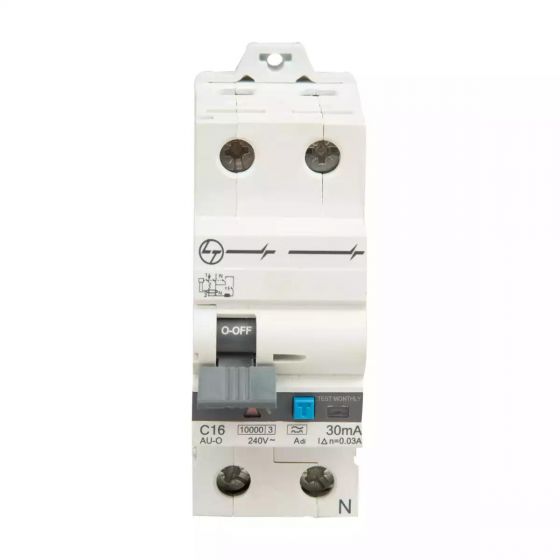

AU RCBO 16A DP 240V Adi 10kA 300mA C Curve AUF3D201630
AU RCBO 16A DP 240V Adi 10kA 300mA C Curve AUF3D201630
Regular price
Rs. 3,206.00
Regular price
Sale price
Rs. 3,206.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Operating Temperature Range | -25?C to +60?C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid)25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 20A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
