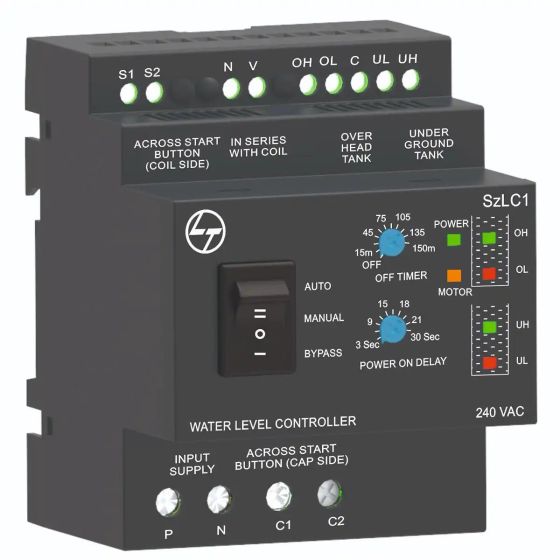

Auto WLC, SzLC1 : For Single Phase (STARTER+CAP) Single Tank

Auto WLC: WLC monitors the water level in the tanks and controls the actuation of the motor/pump. The WLC can be used for applications like filling & draining the tank, filling only one tank with dual levels monitoring, draining only one tank with dual level monitoring.
This Auto WLC comes with three variants:

SzLC – Used for Single Phase Monoblock & Self Priming Pump (Upto 3HP)
SzLC1 – Used for Single Phase Submersible Pump (Upto 3HP)
SzLC3 – Used for Three Phase Submersible

Features include:

Two level detection of water in a tank.
One/Two tank monitoring for draining or filling or draining and filling the water.
High load switching capacity of output up to 30A. (For SzLC & SzLC1)
Separate LED indication for water level, power, and relay status.
Settable power on delay and OFF timer.
Multiple operating modes like AUTO/ ON/ OFF (For SzLC) and AUTO/ MANUAL/ BYPASS (For SzLC1 & SzLC3).
Protections against dry run and over filling, means trip against tank emptying and over filling through probe sensing only.
