Dhupar Brothers Trading Pvt Ltd

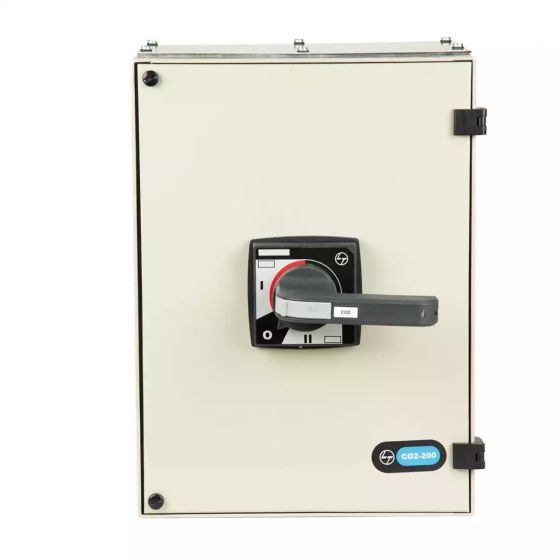

C-Line Manual Changeover Switch FR2 160A 4P 415V AC SS Enclosure Extended Handle CO21600OSOO
C-Line Manual Changeover Switch FR2 160A 4P 415V AC SS Enclosure Extended Handle CO21600OSOO
Regular price
Rs. 12,110.00
Regular price
Rs. 17,300.00
Sale price
Rs. 12,110.00
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Rated Operational Current (A) | 200 |
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 16000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 8 |
| Rated Operational Power (kW) | 85 |
| Rated Breaking Capacity@AC-23A (A) | 1600 |
| Rated Making Capacity@AC-23A (A) | 2000 |
| Version | Manual, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 16000 |
| Maximum Al termination (sq.mm) | 150 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
