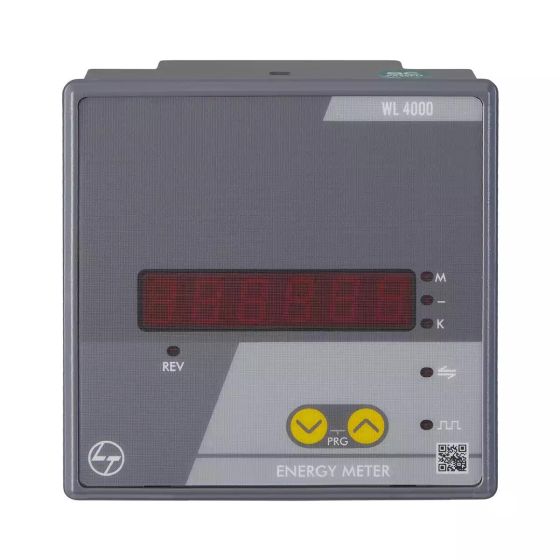

Digital kWh Meter LED Cl 1 with RS485 - Energy Meter

Digital Panel Meter Class 1 used for Measurement of Energy.

Salient Propositions and Features:
True RMS measurement
Auto-scaling of Kilo, Mega, Giga values
Auto scrolling
Simultaneous sampling of Volts & Amps
Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
Positive energy accumulation even with CT polarity reversal, reverse lock programmable
Low PT, CT burden
Programmable PT, CT ratio
User programmable password protection
Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
Old register to store the previously cleared energy value
Wide operating range of 80 to 300 V AC/DC auxiliary supply
Site selectable 1A/5A CT secondary
Suitable with EMS, PMS, SCADA Softwares
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
This Meter can be used at Residential / Industrial PCC / MCC Power Distribution Panel to measure Active Energy.
