Dhupar Brothers Trading Pvt Ltd

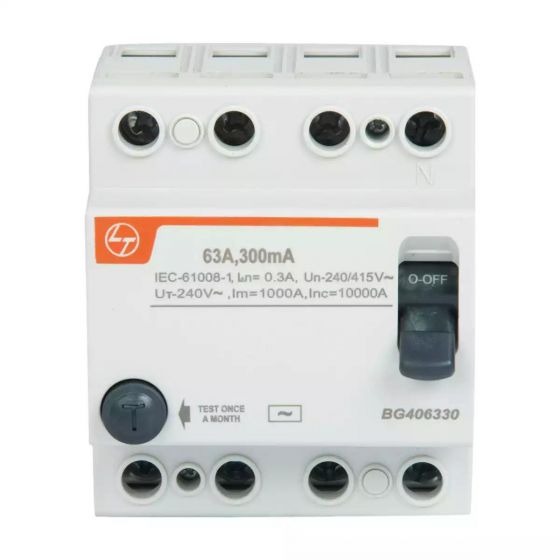

EXORA RCCB 63A FP 415V AC 300mA BG406330
EXORA RCCB 63A FP 415V AC 300mA BG406330
Regular price
Rs. 3,549.00
Regular price
Rs. 5,070.00
Sale price
Rs. 3,549.00
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Operating Temperature Range | -5?C to +55?C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid)35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | FP |
| Conformance to standards | IS 12640-1IEC 61008-1 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1 kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 10 kA |
| Current Rating | 100A |
| Rated Operational voltage (Ue) | 415V |
| Conformance to Standards | IS 12640-1IEC 61008-1 |
| Sensitivity | 300mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 71 |
