Dhupar Brothers Trading Pvt Ltd

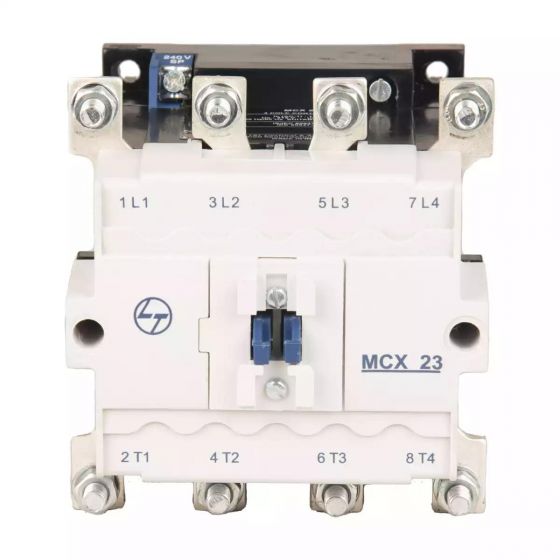

MCX Contactor 130A 4P 415V AC AC-1 415V AC Coil 50/60 Hz CS97018DOOO
MCX Contactor 130A 4P 415V AC AC-1 415V AC Coil 50/60 Hz CS97018DOOO
Regular price
Rs. 7,561.00
Regular price
Sale price
Rs. 7,561.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 60 degree C |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 220 V AC |
| Rated operational current at 415V | 160A (AC1) |
| No. of Poles | 4P |
| Height(mm) | 175 |
| Width(mm) | 183.5 |
| Depth(mm) | 152 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 550VA |
| Hold on VA consumption | 36VA |
