Dhupar Brothers Trading Pvt Ltd

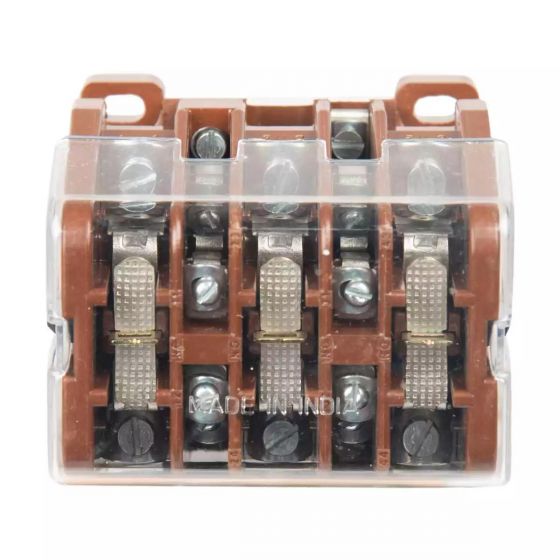

ML Contactor 25A 3P 415V AC In Built 2NO+2NC AC-3 220V AC Coil 50 Hz SS91851KOOO
ML Contactor 25A 3P 415V AC In Built 2NO+2NC AC-3 220V AC Coil 50 Hz SS91851KOOO
Regular price
Rs. 2,782.00
Regular price
Sale price
Rs. 2,782.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 3000 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 500V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 25A |
| No. of Poles | 3P |
| Height(mm) | 66 |
| Width(mm) | 73 |
| Depth(mm) | 85.5 |
| Rated kW | 11kW |
| Rated making capacity | 252A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 210A |
| Mechanical Life | 15 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 60VA |
| Hold on VA consumption | 15VA |
