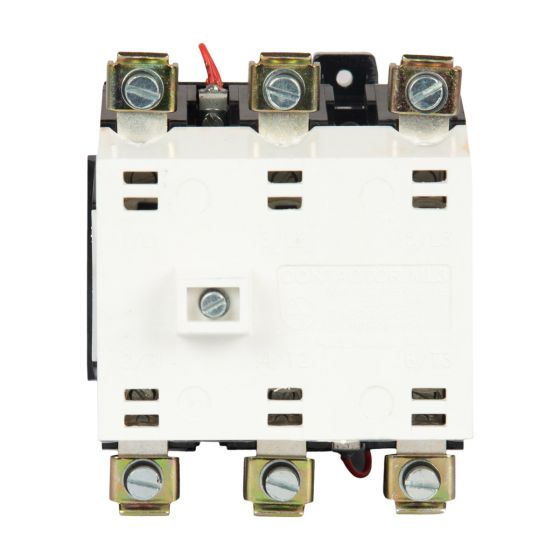

ML Contactor 40A 3P 415V AC In Built 2NO+2NC AC-3 42V AC Coil 50 Hz SS90721HOOO
ML Contactor 40A 3P 415V AC In Built 2NO+2NC AC-3 42V AC Coil 50 Hz SS90721HOOO
Regular price
Rs. 7,625.00
Regular price
Sale price
Rs. 7,625.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 3000 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 500V |
| Conformance to Standards | IS/IEC 60947-4-1, IEC 60947-4-1 |
| Coil Voltage | 525V AC Coil |
| Rated operational current at 415V | 25A |
| No. of Poles | 3P |
| Dimension 1 | 66 |
| Dimension 2 | 73 |
| Dimension 3 | 85.5 |
| Rated kW | 11kW |
| Rated making capacity | 252A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 210A |
| Mechanical Life | 15 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 60VA |
| Hold on VA consumption | 15VA |
