Dhupar Brothers Trading Pvt Ltd

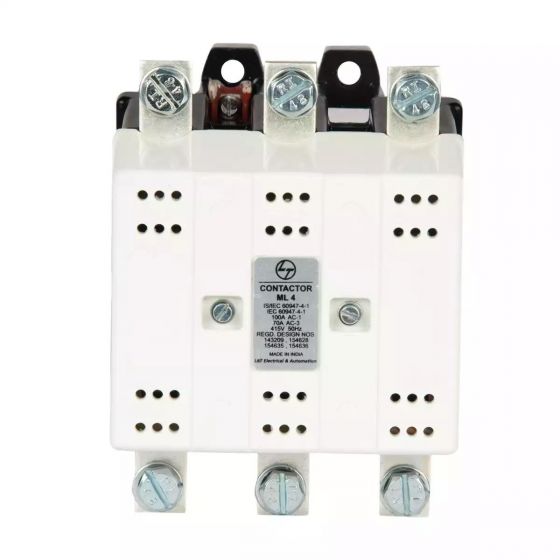

ML Contactor 70A 3P 415V AC In Built 2NO+2NC AC-3 240V AC Coil 50 Hz SS90910BOOO
ML Contactor 70A 3P 415V AC In Built 2NO+2NC AC-3 240V AC Coil 50 Hz SS90910BOOO
Regular price
Rs. 14,070.00
Regular price
Rs. 20,100.00
Sale price
Rs. 14,070.00
Unit price
/
per
In stock
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 1200 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 660V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 70A |
| No. of Poles | 3P |
| Height(mm) | 142 |
| Width(mm) | 110 |
| Depth(mm) | 136 |
| Rated kW | 37kW |
| Rated making capacity | 840A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 700A |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 450VA |
| Hold on VA consumption | 50VA |
