Dhupar Brothers Trading Pvt Ltd

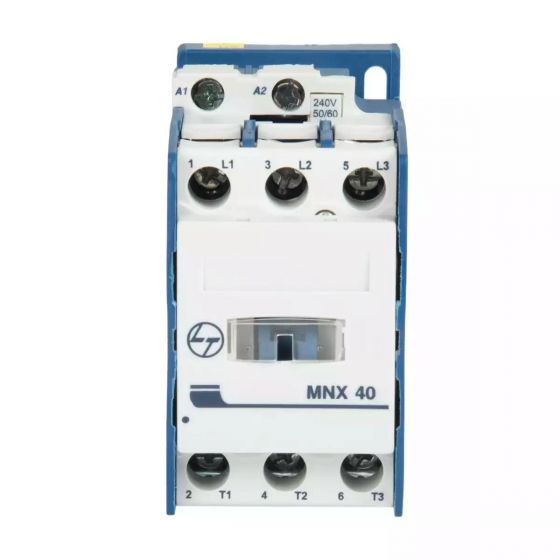

MNX Contactor 40A 3P 415V AC AC-3 220V AC Coil 50/60 Hz CS94190KOOO
MNX Contactor 40A 3P 415V AC AC-3 220V AC Coil 50/60 Hz CS94190KOOO
Regular price
Rs. 2,665.00
Regular price
Sale price
Rs. 2,665.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 3600 Cy/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 40A |
| No. of Poles | 3P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 95.7 |
| Rated kW | 22.5kW |
| Rated making capacity | 550V |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Rated breaking capacity | 500V |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
