Dhupar Brothers Trading Pvt Ltd

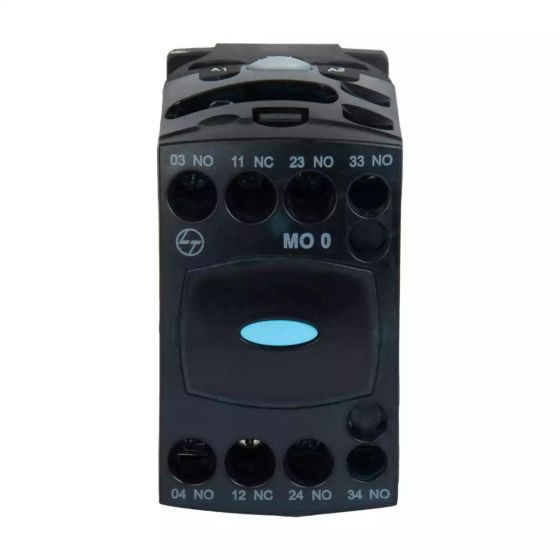

MO0 Control Contactor 4A 4P 415V AC 3NO+1NC AC-15 220V AC Coil 50/60 Hz CS91624KOOO
MO0 Control Contactor 4A 4P 415V AC 3NO+1NC AC-15 220V AC Coil 50/60 Hz CS91624KOOO
Regular price
Rs. 595.00
Regular price
Sale price
Rs. 595.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Ambient temperature | -5 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 7200 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094751, IEC 6094751, EN 6094751 |
| Coil Voltage | 24 V AC |
| Rated operational current at 415V | 4A (AC15) |
| No. of Poles | 3NO+1NC |
| Height(mm) | 86.5 |
| Width(mm) | 45 |
| Depth(mm) | 89 |
| Coil Operating band %Uc (Pick up) | 65 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 30 - 55 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 9VA |
