Dhupar Brothers Trading Pvt Ltd

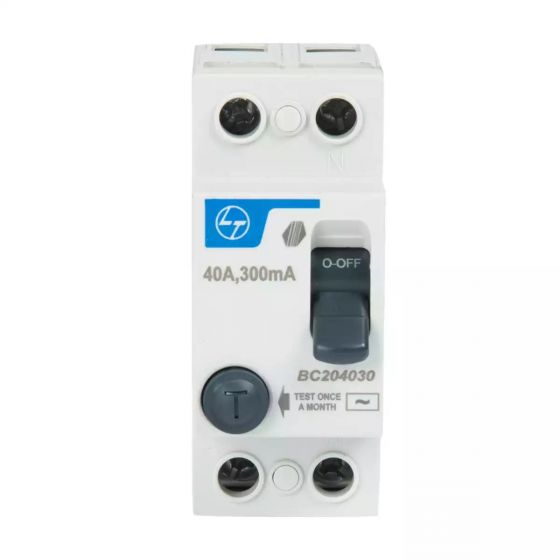

Tripper RCCB 40A DP 240V AC 300mA BC204030
Tripper RCCB 40A DP 240V AC 300mA BC204030
Regular price
Rs. 1,521.00
Regular price
Sale price
Rs. 1,521.00
Unit price
/
per
Couldn't load pickup availability
Technical Specification
| Operating Temperature Range | -5?C to +55?C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid)35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 6kA |
| Current Rating | 63A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IS 12640-1 |
| Sensitivity | 300mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 35 |
