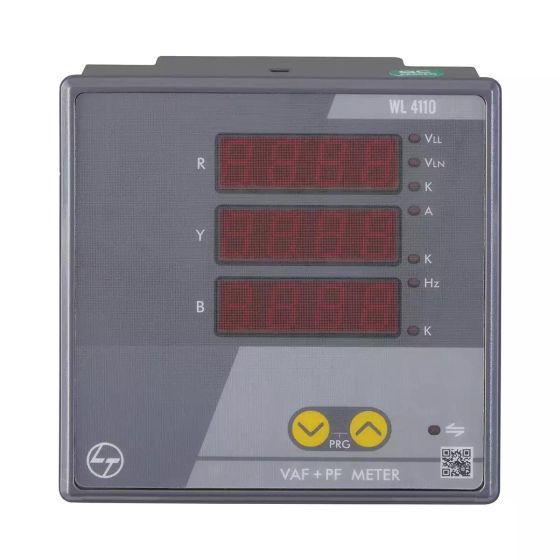

VAF + PF Digital Meter, Cl 1

This is a basic Multifinction Meter which is used to Measure the Voltage, Current, Frequency & Power Factor with Class 1 Accuracy.

Salient Propositions and Features:
Auto and manual scrolling.
Password protection site selectable
Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
True RMS measurement
Field programmable CT, PT ratio
Site selectable 1A/5A
Phase wise and average display of voltage and current as per applicable meter
Inbuilt selector switch for 3 phase models
Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
Wide operating range of 80 to 300 V AC/DC auxiliary supply
Suitable for 50/60 Hz
This Meter can be used at Residential / Industrial Power Distribution Panel to measure basic Electrical Power Parameters.
